Operation

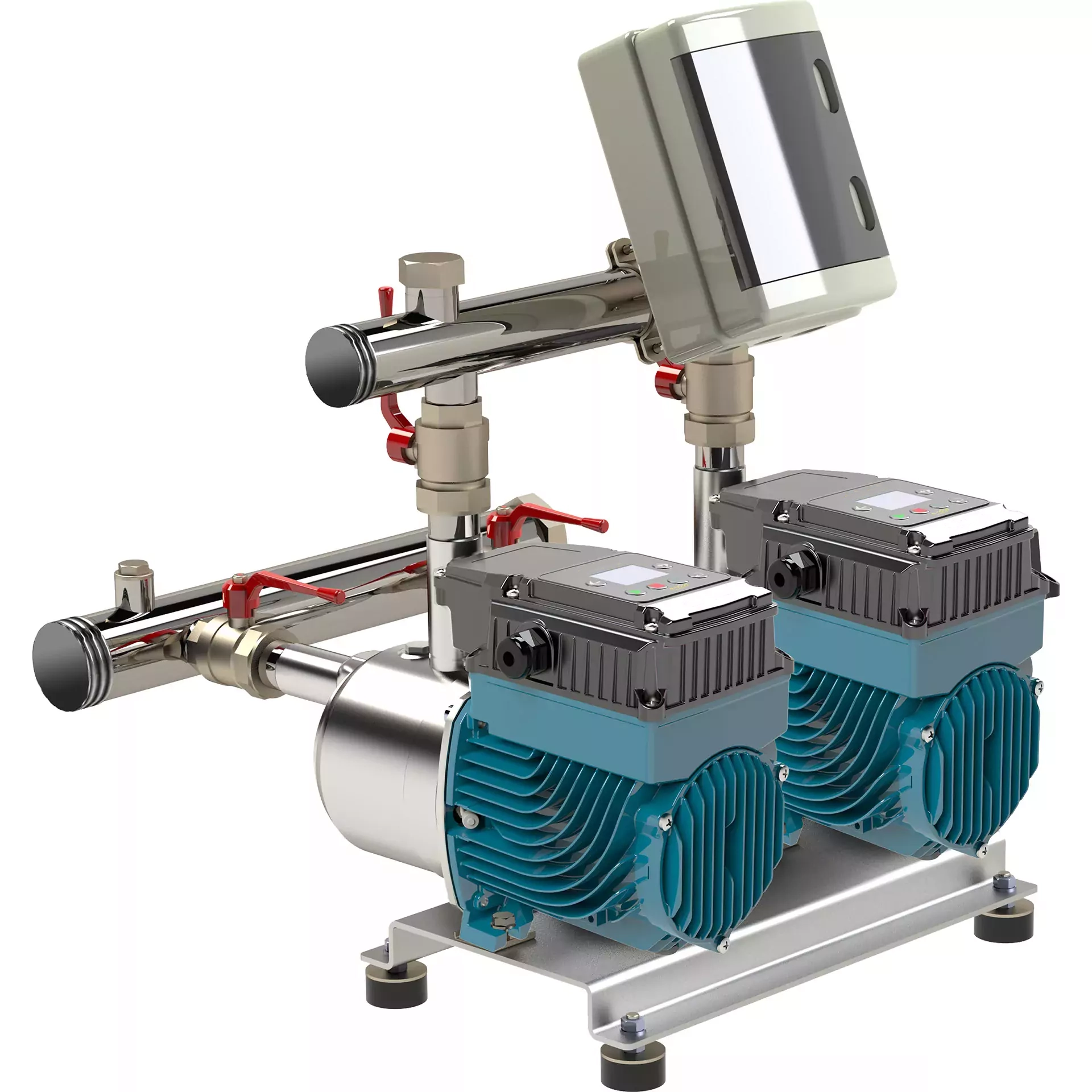

A self-priming pressure boosting system with variable-speed control.
ALPHA comes as a ready-to-install solution, incorporating an integrated pressure sensor, check valve, and pressure vessel.
The variable speed drive (VSD) ensures automatic pump activation and shutdown while keeping output pressure constant.
Applications
General water supply
Residential use, garden systems, and irrigation
Specifications
| Flow | Head | Power |
|---|---|---|
| 2 / 16,8 | 15 / 55 | 1.35 |
| mc / h | m | kW |
Operating Specifications
Handles liquids between 0 °C and +35 °C
Can operate in ambient temperatures up to 40 °C
Pump casing rated for a maximum pressure of 8 bar
Intended for uninterrupted, continuous operation
| Model ID | Model | Family | Code | Photo Group | Speed | VSD Type | kW | Number of Pumps |
|---|---|---|---|---|---|---|---|---|
| 638 | SEU2V 2 ALPHA | SEU ALPHA | 19820000100 | — | Variabile | ALPHA | — | 2 |
| 641 | SEU2V 2 ALPHA SMALL | SEU ALPHA | 19160000300 | — | Variabile | ALPHA S | — | 2 |
