PV Modules
Avanza Series – N-Type TOPCon & HJT Bifacial PV Modules
N-Type TOPCon & HJT Bifacial PV Modules
The Avanza Series represents the next generation of high-efficiency photovoltaic solutions, available with advanced N-type TOPCon and N-type HJT bifacial cell technologies for modern solar projects.
- N-Type TOPCon & HJT Cell Technologies
- Bifacial Energy Generation
- Lower LID & PID Degradation
- Optimized for Utility-Scale & High-Performance Projects
- Enhanced Lifetime Performance
ISO Certified
Quality assured
High Performance
Engineered for efficiency
Global Support
50+ countries
Built to Last
Durability first
Key Features
01
02
03
04
05

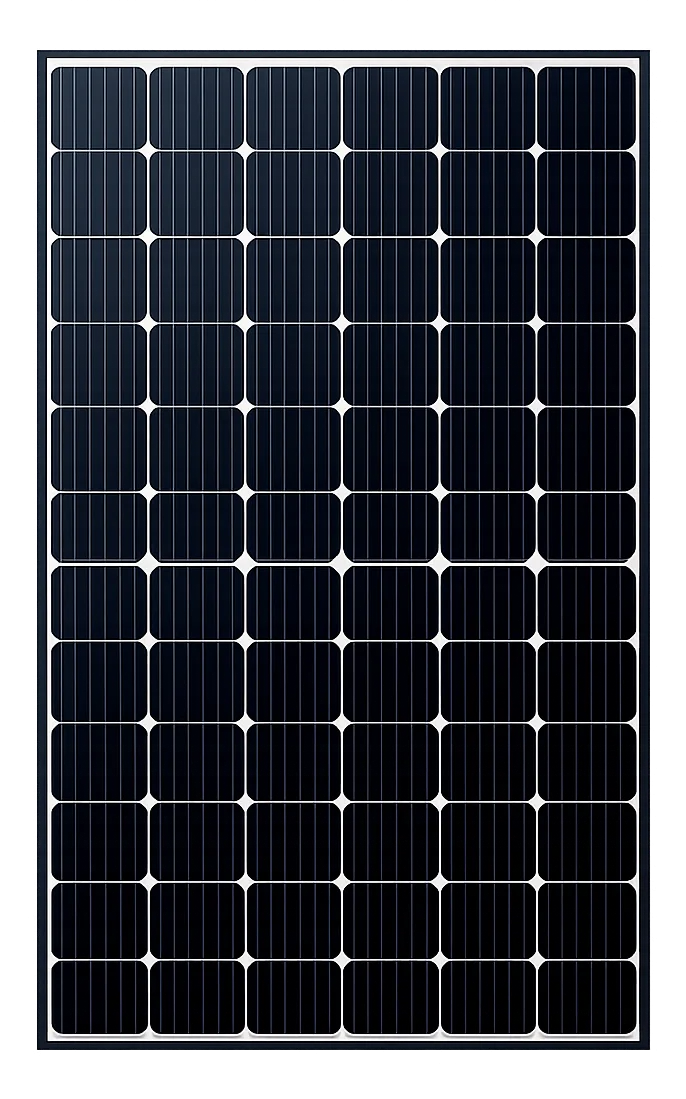

The Solanzo Avanza Series represents the next generation of high-efficiency photovoltaic solutions, available with advanced N-type TOPCon and N-type HJT bifacial cell technologies for modern solar projects. These modules are designed to maximize energy yield, enhance long-term reliability, and reduce the total cost of electricity over the system lifetime.
Key Characteristics
N-Type TOPCon & HJT Cell Technologies: Avanza modules are available with advanced N-type TOPCon and N-type HJT cell architectures, delivering high conversion efficiency, improved temperature behavior, and strong long-term stability compared to conventional P-type modules.
Bifacial Energy Generation: Generates additional power from rear-side irradiation, increasing total energy yield depending on installation conditions.
Lower LID & PID Degradation: N-type cell platforms help minimize Light-Induced Degradation (LID) and improve resistance to Potential-Induced Degradation (PID), supporting consistent output over decades.
Optimized for Utility-Scale & High-Performance Projects: Ideal for large-scale solar power plants, commercial installations, and demanding environments where maximum efficiency and reliability are critical.
Enhanced Lifetime Performance: Slower annual degradation rates translate into higher energy production and improved return on investment over the module's operational life.
The Avanza Series is a future-ready solution for developers and EPCs seeking cutting-edge N-type TOPCon and N-type HJT module options, bankable performance, and long-term energy security.
| Cell Technology | N-Type TOPCon / N-Type HJT monocrystalline bifacial half-cut cells |
|---|---|
| Rated Power Range | 495 – 735 W |
| Max. Module Efficiency | Up to 23.66% |
| Cell Configuration | 108 / 132 / 144 half-cut cells (variant dependent) |
| Bifaciality Factor | 80% ± 5% |
| Power Tolerance | 0 ~ +5 W |
| Max. System Voltage | 1500 V DC |
| Operating Temperature | −40 to +85 °C |
| Temp. Coefficient of Pmax | −0.29 %/°C |
| Temp. Coefficient of Voc | −0.25 %/°C |
| Temp. Coefficient of Isc | +0.046 %/°C |
| Front Cover | 2.0 mm high-transmission, AR-coated tempered glass |
| Back Cover | 2.0 mm transparent tempered glass |
| Encapsulation | POE |
| Junction Box | IP68 rated, 3 bypass diodes |
| Connectors | MC4-type, IP68 rated (2 × 4 mm² cable, 300 mm) |
| Frame | Anodized aluminium alloy (30–33 mm) |
| Dimensions | 1961 × 1134 × 30 mm to 2384 × 1303 × 33 mm (variant dependent) |
| Weight | 27.0 – 37.5 kg (variant dependent) |
| Mechanical Load | 5400 Pa snow (front) / 2400 Pa wind (rear) |
| Hail Resistance | Ø 25 mm at 23 m/s |
| Fire Rating | Class A (UL 790) |
| Certifications | IEC 61215, IEC 61730 |
| Product Warranty | 15 years |
| Performance Warranty | 30 years — ≥87.4% warranted power at year 30 |
Technical datasheets
6 files
SZA-132NT-BF
Full technical specifications · PDF
710–735 W
SZA-108NT-BF
Full technical specifications · PDF
495–520 W
SZA-144NT-BF
Full technical specifications · PDF
575–600 W
SZA-132NT-BF
Full technical specifications · PDF
605–630 W
SZA-132NT-BF
Full technical specifications · PDF
625–650 W
SZA-132NT-BF
Full technical specifications · PDF
650–670 W
